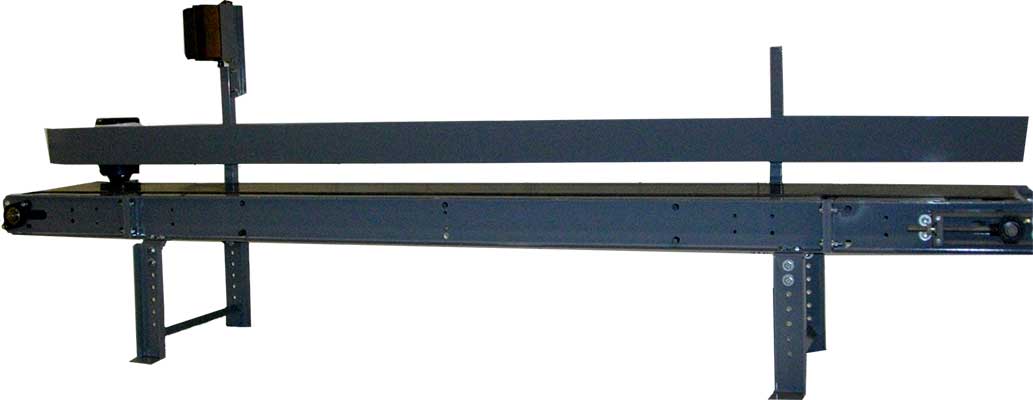

JEM manufacturers a complete line of bag closing, bag positioning and bag transfer conveyors to meet almost any application.  The BC series conveyor is a bag closing conveyor for 15-110 lb. bag weights.  These are manufactured in 2ft increments with a range of 8ft thru 24ft conveyor with a 12” belt width.  All conveyors are made of 6” formed steel and include an adjustable back rail, take up bearings, 3 ply belt and complete controls package including an inverter duty gearmotor and variable speed drive.  For smaller bag weights we make a 6” table top conveyor with adjustable front and back guide rails for bag support and complete controls package with inverter duty gearmotor and variable speed drive.

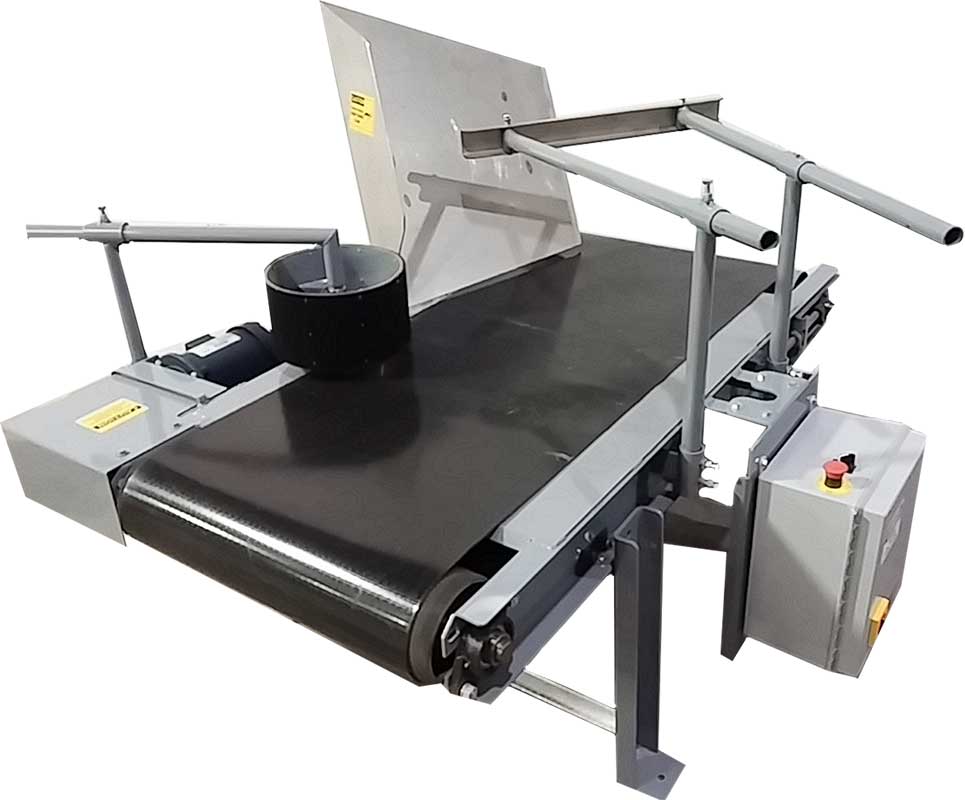

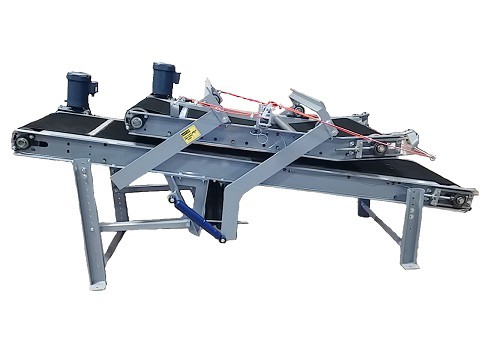

After the bag is closed it will transfer to a KD5 knockdown turning conveyor for a straight line layout.  If your plant layout requires the bag to move 90 degrees we offer a BK5 bag kicker conveyor.  OSHA and various government agencies recommend that all manual palletizing be done at waist height or approximately 42” from the floor to prevent back injuries.  We manufacture bag incline and bag flattening conveyors that even the product within the bag for optimal pallet stacks.  Manual palletizing stations will include a GRT, gravity roller conveyor so the operator is not pulling bags from a live motorized conveyor.  The Bishamon pallet positioner will automatically lower each layer the operator stacks to prevent bending over.  It also includes a turntable top to prevent reaching over the pallet and twisting which is the #1 cause of back injuries.

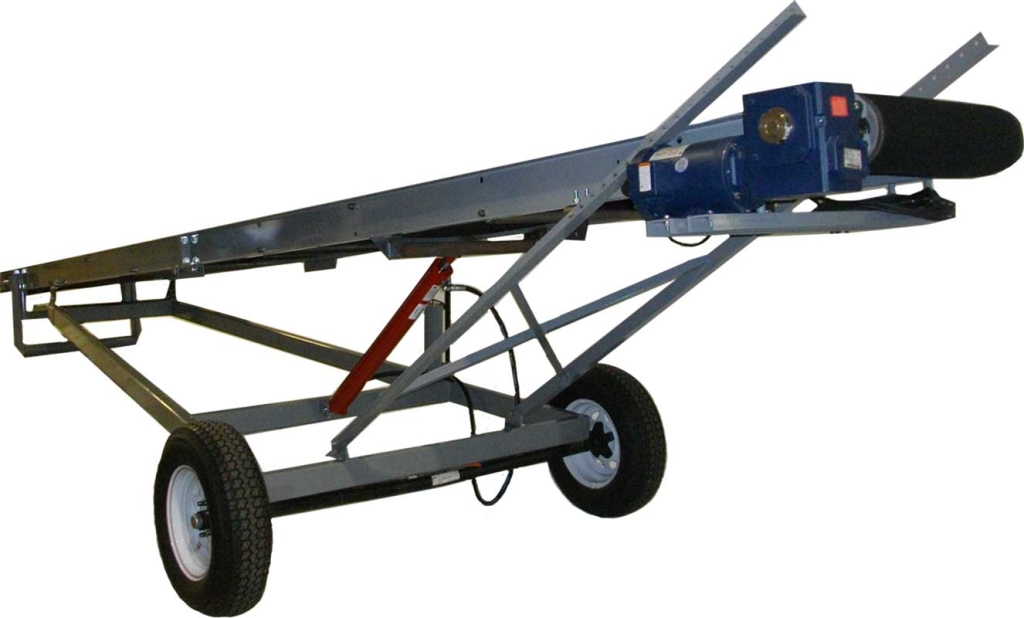

Robotic palletizing systems will include bag centering, accumulation and robot pick conveyors.  24ft portable incline conveyors are designed for international applications where you need the capability to stack bags on a pallet or stack directly into an open top truck.
